STRUCTURAL

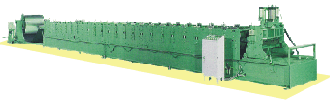

STEEL FLOOR FORMING MACHINE
|
| Specification | Standard Fitttings | |
|
1. Hydraulic Motor
|
20 ~ 30 Hp | 1. Uncoiler (KC-UND2) |
| 2. Number Of Stands | 20 ~ 30 Set | 2. Hydraulic Cuttting Device |
| 3. Roll Shaft Dia | 85 ~ 95 mm | 3. Digital pressure control circuit |
| 4. Thickness Of Forming Sheet | 0.8 ~ 1.6 mm | 4. PLC automatic control cabinet. |
| 5. Forming Speed | 12 ~ 16 M/min | 5. Run Out Table |
|
KC-FL500A
|
 |
 |
|
|
KC-FL500B
|
 |
 |
|
|
KC-FL500C
|
 |
 |
|
|
KC-FL500D
|
 |
 |
|
|
KC-FL500E
|
|
 |
