LIGHTWEIGHT

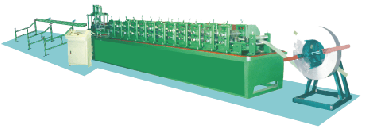

ASHLARING SYSTEM FORMING MACHINE
Size: 45~150w X 25~60h
|
|||
 |
|||
|
Specification
|
|||
|
1. Sheet Taickness : 0.5~2.5 mm
|
4. Nunber Of Stands : 8-18 Set
|
||
|
2. Forming Speed : 10-20 m/Min
|
5. Motor Out Put : 7 1/2~10 Hp
|
||
|
3. Roller Smaft DIA : 50~60 mm
|
6. Langth x Width : 2.5M x 15 M
|
||
|
Control panel
|
|||
 |
. Punching and cutting are completed at the same time. | ||
| . Digital pressure control circuit | |||
| . PLC automatic control cabinet. | |||
|
|
|||
|

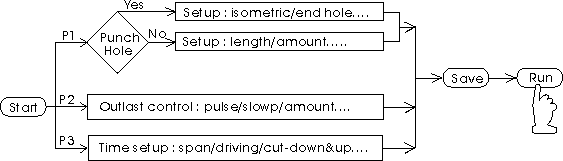

Flow process
|
|||
 |
|||
|
Model
|
|||
|
KC12-G360-1
|
KC16-G360-2
|
KC12-G360-3
|
KC12-G360-4
|
|
40wx35h-150wx45h
|
65wx35h-150wx35h
|
30wx35h-150wx35h
|
112wx35h
|
 |
 |
 |
 |
|
KC8-G360-5
|
KC12-G360-6
|
KC10-G360-7
|
KC12-G360-8
|
|
42wx30h-152wx30h
|
75wx19h
|
25-50wx25-50h
|
60wx20/30h
|
 |
 |
 |
 |
|
|
|||
|
