POLY
URETHANE FORMING LINE

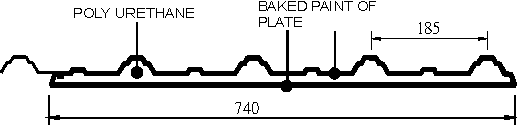

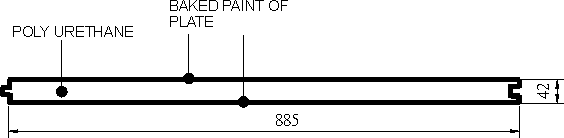

HOUSETOP & CLAPBOARD (ASSEMBLY HOUSE)
|
| Specification: | |
| 1. Number Of Stands : 32 Up+Dn | |
| 2. Motor Out Put : 10~15HP | |
| 3. Roll Shaft DIA : 60 mm | |
| 4. Standard Fitttings: | |
| a- Uncoiler x 2 set | |
| b- Hydraulic Cutting Device | |
| c- Rotary Encoders & Counters | |
| d- Run Table | |
| 1. UNCOILER-Dn | 8. RUN TABLE | |
| 2. UNCOILER-Up | 9. CUMULATE AREA | |
| 3. CUTTING(afore) | 10. MATERIAL | |
| 4. FORMING MACHINE | 11. POLY URETHANE | |
| 5. INJECTION PUMP | MACHINE | |
| 6. HANDLINE EQUIPMENT | 12. CONTRULLER (FORMING) | |
| 7. CUTTING(backmost) | 14. CONTROLLER (PU) | |
